6200 Series

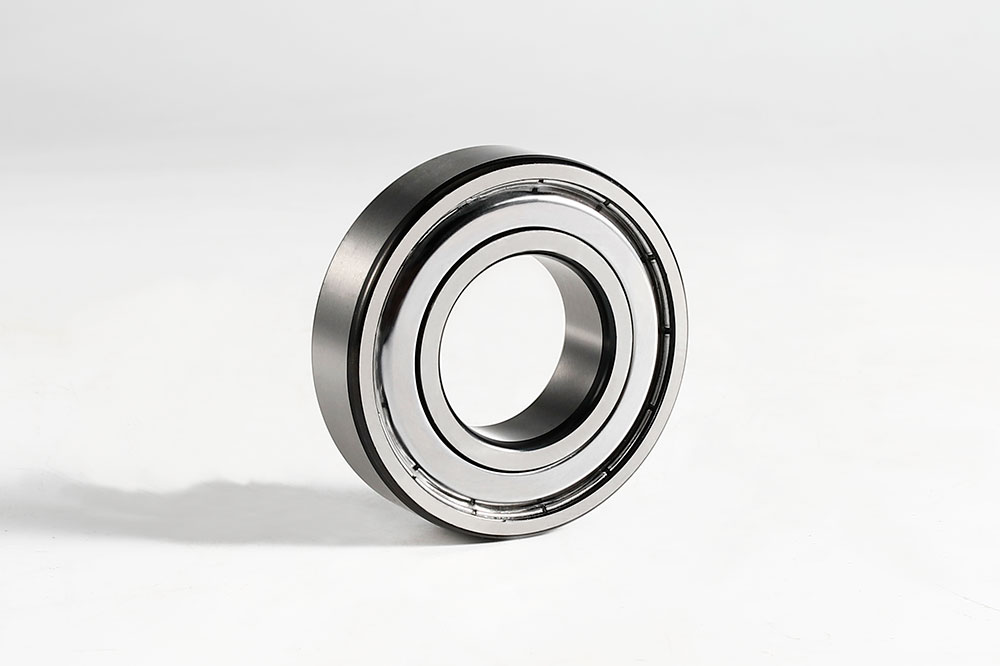

6200 Deep Groove Ball Bearing
The HSM 6200 deep groove ball bearing delivers outstanding high-speed performance in a compact 10×30×9 mm envelope. Featuring precision-ground raceways and optimized ball complement geometry, it achieves a rated speed of 32,000 RPM with minimal friction and acoustic signature. Designed for electric motors, cooling fans, and office automation equipment where space efficiency and rotational speed are paramount. Available in open, shielded (ZZ), and sealed (2RS) variants; OEM custom branding and packaging accepted from 500 pcs.
Specifications
Bore Diameter d
10 mm
Outer Diameter D
30 mm
Width B
9 mm
Dynamic Load Rating Cr
5,100 N
Static Load Rating Cor
2,390 N
Limiting Speed (Grease)
17,000 rpm
Limiting Speed (Oil)
30,000 rpm
Weight
32 g
Please confirm any unlisted parameters with us. Availability, material and lead time are subject to quotation.
Features
Ultra High Speed 32000 RPMLow NoiseCompact DesignISO Precision GradeOEM Available
Applications
Electric MotorsCooling FansOffice Automation EquipmentSmall PumpsPrecision Instruments
